Wenzhou Kaitai Special Electrical Co., Ltd.

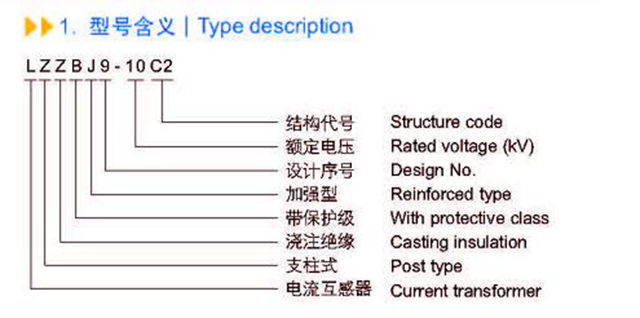

LZZBJ9-10C2Type current transformer

2、Technical data

Rated primary current（A）	Accuracy classes combination	Rated secondary output（VA）					1s thermal current（kA）	Rated dynamic current（kA）	Notes
		0.2S 0.5S	0.2	0.5	10P10	10P15
5-150	0.2S/10P15 0.5S/10P15 0.2/10P15 0.5/10P15 10P10/10P10	10	10	15	15	20	150lin	375lin	Two windings
200							36	80
300-800							45	100
1000-1500			15	20	20	30	63	130
2000-3150							80	160
5-150	0.2S/0.2/10P15 0.2S/0.5/10P15 0.2/0.5/10P15 0.5/0.5/10P15		10	15	15	15	150lin	375lin	Three windings
200							36	80
300-800							45	100
1000-1500				20	20	20	63	130
2000-3150							80	160
