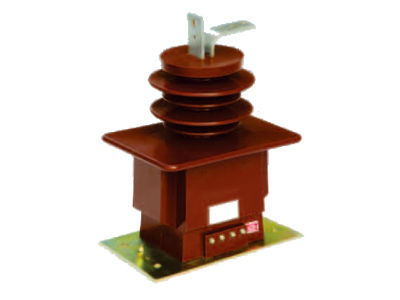

LZZB7-35 type current transformer

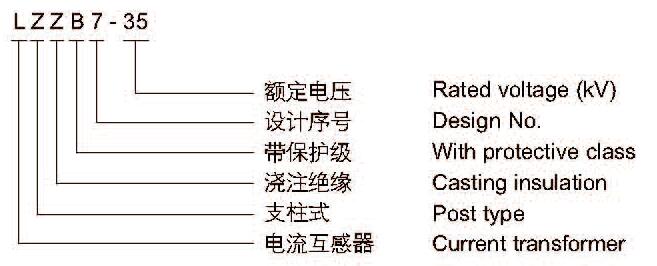

1、Type description

2、Technical data

Rated primary current（A）	Accuracy classes combination	Rated secondary output（VA）				Short thermal current(kA/S)	Rated dynamic current（kA)
		0.2S	0.2	0.5	10P10
50	0.2(S)/10P10 0.5(S)/10P10	15	15	30	30	8/2	20
75						12/2	30
100						16/2	40
150						20/2	50
200
300						20/4	50
400
500
600						31.5/4	80
750
800
1000						40/4	100
1200						63	130
1500						72
2000						80

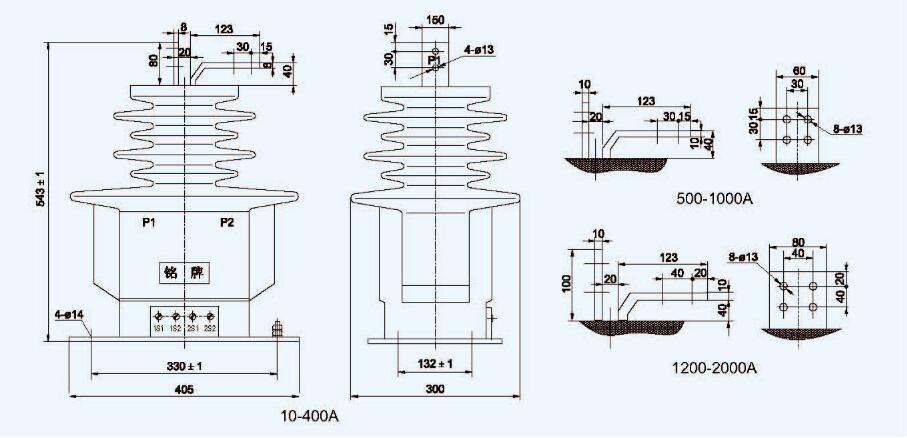

3、Overall dimension drawing
